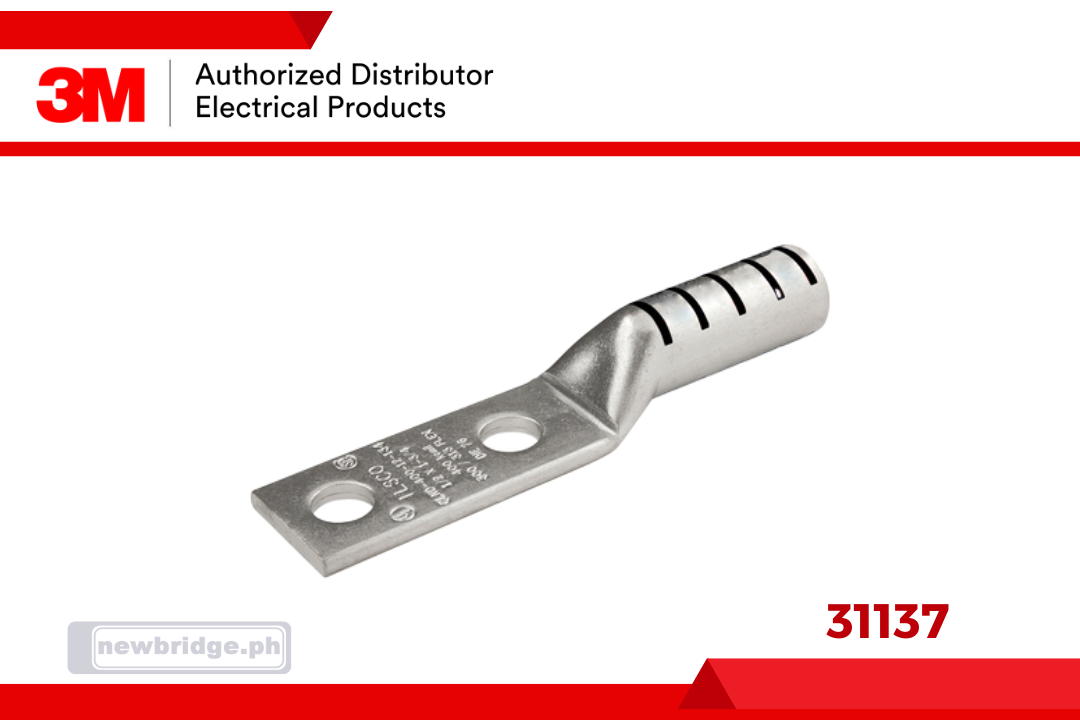

Product: 31137, 3M™ Scotchlok™ Copper Two Hole Lug, up to 35 kV, 2/0 AWG. 1/2 AWG, black
Ref. Catalog: 31137
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (12.78 x 2.06 x 1.42)
Weight: g (100)
Price: 472.00
Stocks: 1
Add to cart3M Scotchlok Copper Compression Lugs are one-piece, seamless copper and are designed to cover a wide range of conductor sizes. They are available in one-hole, standard-barrel and one-hole and two-hole long-barrel versions: Scotchlok lug 30000 Series are one-hole, standard-barrel length lugs and are designed to cover conductor sizes from 6 AWG through 4/0 AWG. The Scotchlok lug 31000 Series consists of: o one-hole, long-barrel length lugs designed to cover conductor sizes from 2 AWG through 600 kcmil (MCM) and, o two-hole, long-barrel length lugs designed to cover conductor sizes from 6 AWG through 1000 kcmil (MCM) They are designed to terminate copper conductors. Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure simplicity and ease of conductor insertion.
- Simple installation using readily available tools
- Contact aid provided in the lug barrel is compatible with poly/EPR insulations
- Colour coded for easy identification
- Electro-tin plated to resist electrolytic corrosion
- Chamfered ends ensure ease of wire insertion
3M™ Scotchlok™ Copper Two Hole Lug 31137 has a 1/2 in (1.3 mm) stud size, a 0.56 in (14.2 mm) O.D., and a 5.03 in (127.8 mm) length. One piece seamless design.
Suggested Applications
- Intended to terminate copper conductors only
- For indoor or outdoor use
- For low and medium voltage up to 35 kV
